Project Layout

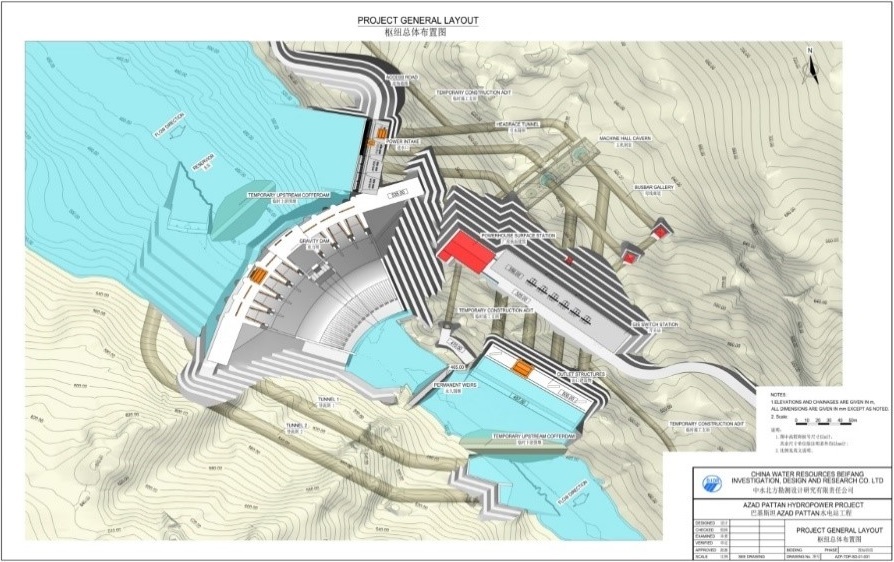

The main project components comprise:

  • • RCC gravity dam;
  • • High-capacity gated spillway incorporated into the dam crest;
  • • Low level outlets located within a central non-overflow section of the dam;

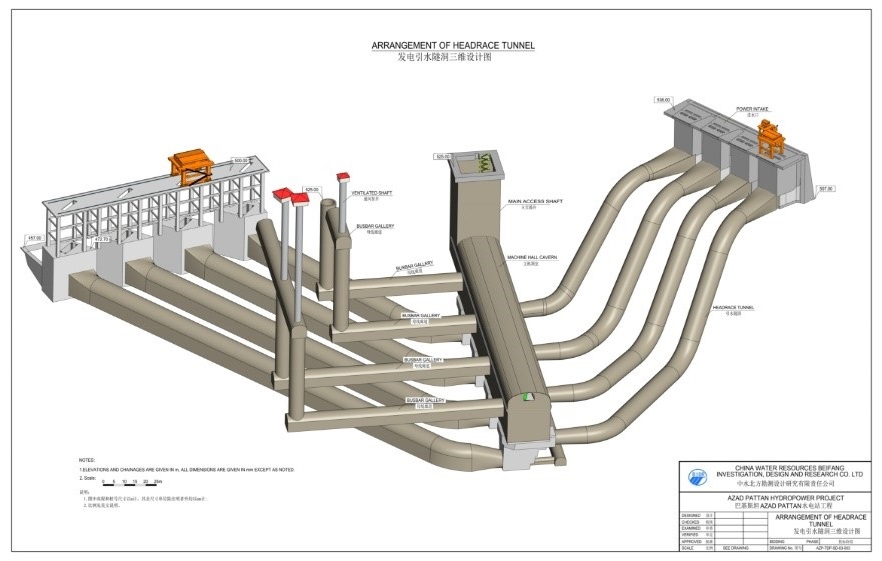

  • • Power generation facilities – underground powerhouse with associated intake structure, headrace tunnels, penstock, and tailrace outfall;
  • • Surface buildings and infrastructure;
  • • River diversion facilities – two tunnels located on the right bank.
